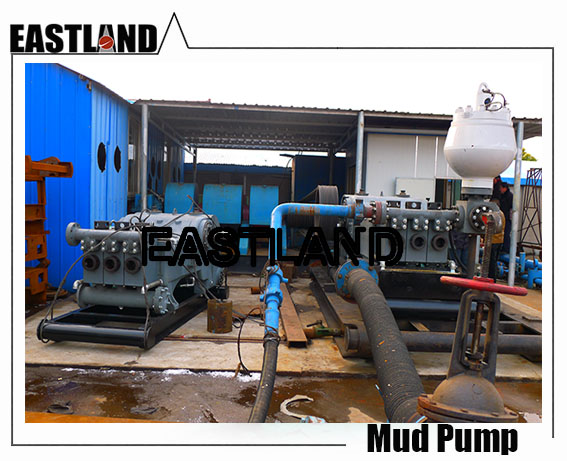

Designed and manufactured by EASTLAND Plant, F-1300 and F-1600 mud pumps can meet the requirements of the same manufacturing technique and quality level as those of F series mud pumps .They feature advanced structural design, reliable use, easy maintenance and compact occupied area. To reduce drilling workers' labour intensity and make the operation easy on site, liners are designed to be fitted into the frame from the frame top. A mini hoist

with 500Kg lifting capacity is mounted on the frame for disassembling and changing liners.

Suction inlets of F-1300 and F-1600 mud pumps are fitted with 12"flanges, F-1300 and F-1600 mud pumps are fitted with API#7 valve pots. The suction valve and the discharge valve are interchangeable. Cylinders are made of forged alloy steel and nickel plated to improve their corrosion resistance. Three cylinders of each pump are interchangeable. Valve-over-valve (through type cylinder) design reduces the cyliner volume and promote the volumetric efficiency.

Notes: Cylinders, liners, pistons, valves and seats, valve springs, seal rings, valve covers and cylinder covers at the fluid end of F-1300 and F-1600 mud pumps are all interchangeable.

Specification of F Series Mud Pump

Gaomi Eastland Oilwell Machinery Co.,Ltd

We've been making and exporting mud pump pars to all over the world since last 10 years.The united states, Canada, Mexcico,Colombia,Venezuela,SouthAsia, Middle East Area(Iran,Kuweit,Libya,Iraq),India,European countries are our markets.

Our main products:

Mud Pump Fluid End Expendables & Spare Parts

Liner: hy-chrome liner, zirconia liner, ceramic liner, chrome-plated liner, hardned liner

Piston: nitrile rubber piston, supreme piston, polyurethane piston, urethane bonded piston, green duo piston, blue lightning piston, white lightning piston

Valve & Seat: three-web valve seat, four-web valve seat, full open valve seat, Bomco type valve seat, NOV valve seat, Mission valve seat, Southwest valve seat

Pulsation Dampener: KB45,KB75,PD45,PD55,K10,K20

Module: “I” shaped module, “L” shaped module, suction module, discharge module

Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug,

Liner Flange, Liner Lock, Mud Baffle

Mud Pump Power End Parts

Pony Rod/Extension Rod, Stuffing Box, Stuffing box Seal Parts, Crosshead, Crosshead Guide, Crosshead Pin, Crosshead Bearing, Connection Rod, Bull Gears, Pinion Shaft, Pinion Shaft Bearing/Bearing Carrier/Oil Seal Gasket/, Crank Shaft, Crank Shaft Bearing/Bearing Carrier, Eccentric Bearing, Inner/outer Race Retainer, Gauges, Oil Lubrication Pump, Mud Pump Transmission Belt Pulley/V-belt

Mud Pump Model:

Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL

Brewster: B-1000-T, B-1100-T, B-1300-T, B-1600-T

HONGHUA: HHF-500, HHF-800, HHF-1000,HHF-1300,HH F-1600,HHF-1600HL, HHF-2200HL

Emsco: F-350,F-500,F-650, F-800, F-1000,FD-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600,FC-2200D-300/500, D-175,D-225,D-375, D-500,D-550,DA-500,DB-500,D-700,DA-70,DB-700,DC-700,DA-850,DB-850,DC-850,D-1000,DB-1000,DC-1000,D-1000-A,D-1350,D-1650

National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,JWS-165-L, JWS-340, JWS-400,C-250,C-350,K-380,K-500-A,G-700,K-700,N-1000,N-1300,N-1600

Oilwell: 350-PT,A-650P-T,A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT,HD-1400-PT,HD-1700-PT

612-P, 212-P,214-P,218-P,700-P,816-P,818-P,1000-P

Ideco: T-500, T-800, T-1000, T-1300, T-1600,MM-450,MM-500-F,MM-600-A,MM-700-F,MM-1000

Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,TGE,TGF,TGH,PAH-275

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000

Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,

WEATHERFORD/Ellis Williams:MP-5,MP-8,MP-10,MP-13,MP-16, E-447, E-2200, W446, W440

Drillmec: 7TS-600,8T-800,9T1000,10T-1300, 12T1600,14T-2200,10D2C, 8D1S

Upetrom: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000

OPI: 350-D,350-GD,500-DC,700-HDL | 1000-HDL

Lewco/Ewco:W-250-C,WH440,W446,W600,WH600,WH770,W1100,WH1312,W1612,W1712,W2000,W2214,W2215

American Block: K800,K1000,K1300,K1600,K2200

Brewster: B-1000-T,B-1100-T,B-1300-T,B-1600-T

Loadmaster: LSF-500, LSF-800, LSF-1000, LSF-1300, LSF-1600

Soilmec: 7T500,7T508,8T650

Dragon: 440HP,660HP

GASO/Wheatly:1550,1560,1563,1654,1742,1753,1874,1849,1860,2652

Great American: GA-550,GA-750

TFI:BH-800, F-500, F-800, F-1000,F-1300, F-1600

TSC: WF-400,WF-450,WF-700,WFU-750,WF-1000,WF-1300,WF-1600,WF-2000,WF-2200

We embrace all opportunities in all kinds of ways f cooperation and will give back with out quality products and service! It is always our goal to be your trustable cooperator and reliable friend!
